sikotec 3P® Resin W1
The Allrounder. Easy to use, high temperature and chemical durability, can be mixed with other resin types.
- Pot life at 20 °C: 17 minutes
- Curing time at 20 °C: 90 – 120 minutes
- Mixing ratio: A:B = 1:2
- Storage/Application temperature: 0-30 °C
- For pipe diameters: 100 – 700 mm
- DIBt* Approval: Z-42.3-326
Order Information
Container: Canister
Minimum order quantity: 1 unit at 30 l (20 l Komp. B, 10 l Komp. A)
Weight per unit: 40.5 kg
sikotec 3P® Resin S1
When extra time is needed. Easy to use, high temperature and chemical durability, can be mixed with other resin types.
- Pot life at 20 °C: 32 minutes
- Curing time at 20 °C: 180 – 240 minutes
- Mixing ratio: A:B = 1:2
- Storage/Application temperature: 0-30 °C
- For pipe diameters: 100 – 700 mm
- DIBt* Approval: Z-42.3-326
Order Information
Container: Canister
Minimum order quantity: 1 unit at 30 l (20 l Komp. B, 10 l Komp. A)
Weight per unit: 40.5 kg
When extra time is needed. Easy to use, high temperature and chemical durability, can be mixed with other resin types.
- Pot life at 20 °C: 32 minutes
- Curing time at 20 °C: 180 – 240 minutes
- Mixing ratio: A:B = 1:2
- Storage/Application temperature: 0-30 °C
- For pipe diameters: 100 – 700 mm
- DIBt* Approval: Z-42.3-326
Order Information
Container: Canister
Minimum order quantity: 1 unit at 30 l (20 l Komp. B, 10 l Komp. A)
Weight per unit: 40.5 kg
sikotec 3P® Resin Turbo W01
When you’re in a hurry! Easy to use, high temperature and chemical durability, can be mixed with other resin types.
- Pot life at 20 °C: 7 minutes
- Curing time at 20 °C: 45 – 60 minutes
- Mixing ratio: A:B = 1:2
- Storage/Application temperature: 0-30 °C
- For pipe diameters: 100 – 700 mm
- DIBt* Approval: Z-42.3-326
Order Information
Container: Canister
Minimum order quantity: 1 unit at 30.75 l (20.5 l Komp. B, 10.25 l Komp. A)
Weight per unit: 40.5 kg
Carrier Materials
Fiberglass Mat, Type ECR 1.050 (red)
- Width: 125 cm, Basis weight: 1.050 g/m²
- Weight per role: approx. 50 kg
- DIBt* Approval: Z-42.3-326
Fiberglass Mat, Type ECR 1.400 (green)
- Width: 125 cm, Basis weight: 1.400 g/m²
- Weight per role: approx. 60 kg
- DIBt* Approval: Z-42.3-326
Bidirectional Fiberglass Mesh Fabric
- Width: 130 cm, Basis weight: 1.086 g/m²
- Weight per role: approx. 50 kg
- DIBt* Approval: Z-42.3-326
Also available in precut widths for various pipe diameters.
Width 35 cm for ∅ 100 mm, 45 cm for ∅ 125 mm, 55 cm for ∅ 150 mm, 70 cm for ∅ 200 mm.
Fiberglass Mat, Type ECR 1.050 (red)
- Width: 125 cm, Basis weight: 1.050 g/m²
- Weight per role: approx. 50 kg
- DIBt* Approval: Z-42.3-326
Fiberglass Mat, Type ECR 1.400 (green)
- Width: 125 cm, Basis weight: 1.400 g/m²
- Weight per role: approx. 60 kg
- DIBt* Approval: Z-42.3-326
Bidirectional Fiberglass Mesh Fabric
- Width: 130 cm, Basis weight: 1.086 g/m²
- Weight per role: approx. 50 kg
- DIBt* Approval: Z-42.3-326
Also available in precut widths for various pipe diameters.
Width 35 cm for ∅ 100 mm, 45 cm for ∅ 125 mm, 55 cm for ∅ 150 mm, 70 cm for ∅ 200 mm.

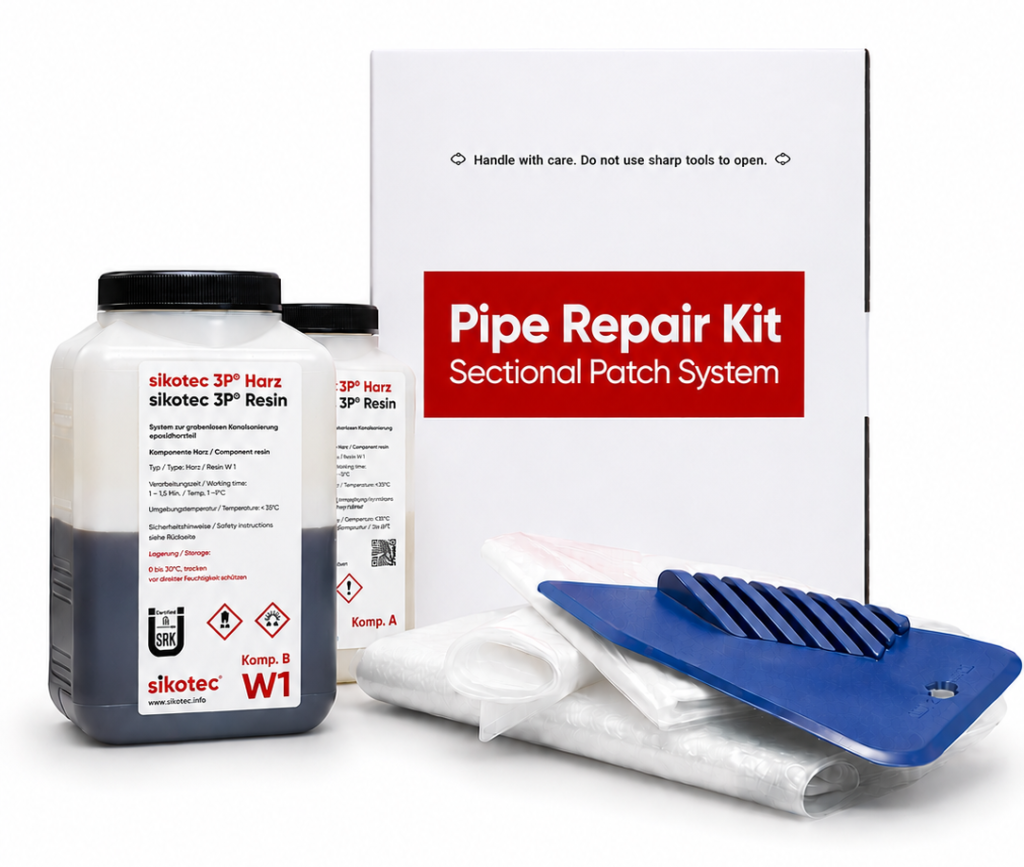

Test Bundle (1.5 l)
- Available for all resin types (W1, S1, Turbo W01, L30 E1)
- For 200 mm pipe diameter
- 1 l Resin (Komp. B), 0.5 l Hardener (Komp. A)
- 0.9 m² Fiberglass mat
- DIBt* Approval: Z-42.3-326
*German Institute of Civil Engineering
